Hot-sale Equipment

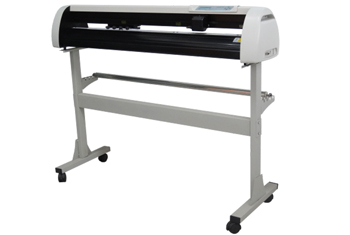

Vinyl Cutting Plotter

Cutting width options: 630MM, 720MM, 860MM, 1010MM, 1250MM, 1680MM

Product Specifications

Model	SF-CP720S	SF-CP800S	SF-CP960S	SF-CP1120S	SF-CP1360S	SF-CP1780S
Max Media Width	720MM (28.4")	800MM (31.5")	960MM (37.8")	1120MM (44.1")	1360MM (53.5")	1780MM (70.1")
Max Cutting Width	630MM (24.8")	720MM (28.3")	860MM (33.9")	1010MM (39.8")	1250MM (49.2")	1680MM (66.1")
Cutting Speed	25 mm/s - 500 mm/s (0.98 inch/s - 19.7 inch/s)
Cutter Pressure	25-500g Grade 16-32
Operation	English LCD
Mechanical Resolution	0.0254 mm/step(0.001 inch/step)
Blade Type	standard Swivel blade (compatible with Roland blade)
Interface	USB 2.0 and RS232 serial interface
Command Language	HP-GL/ DMPL compatible
Bracket	have

* Forward direction and reverse direction paper feed
* Maximum speed of up to 500 mm/s (19.7 inch/s)
* Cutting speed and cutting pressure with memorial storage
* Double photoelectric reset to avoid collision
* Perfect output and without any sawtooth at high speed
* Low running roise
