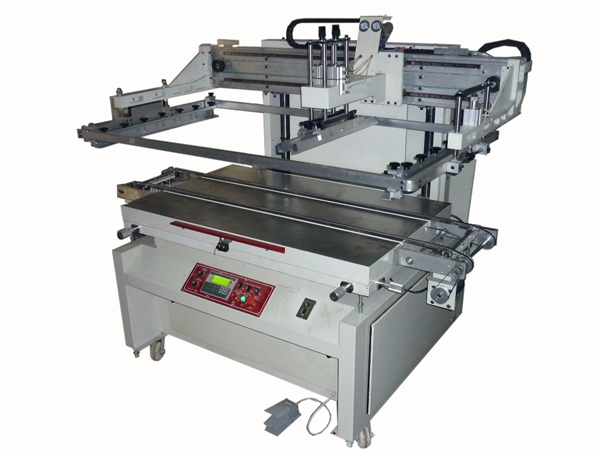

Screen Printing Machine

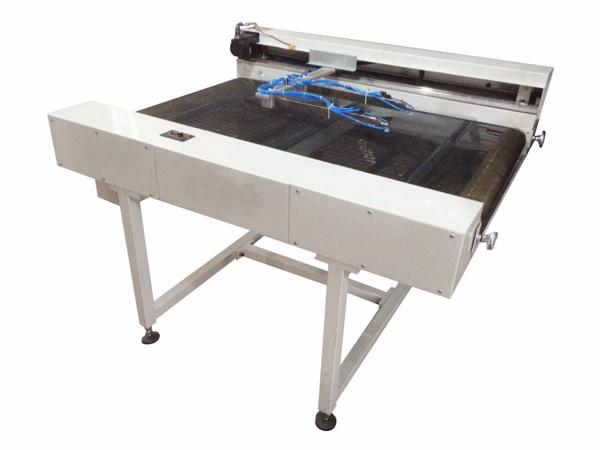

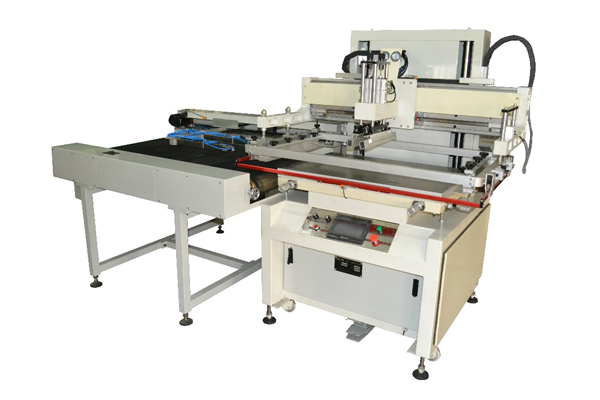

screen machine with conveyor

size options

- max print size: 400 mm * 600 mm print table size: 500 mm * 750 mm

- max print size: 500 mm * 700 mm print table size: 600 mm * 900 mm

- max print size: 600 mm * 900 mm print table size: 700 mm * 1100 mm

Product Specifications

1. Application

Glass, metal, wood and other hard materials, such as architectural glass, appliance glass, decorative glass, signage, PCB circuit board, decorative ceilings, warning signs, ET cold plate.

2.Feature

1). PLC control system.
2). OMRON relay, CHINT AC contactor and YANGMING photocell eye switch.
3). Taiwan gear reducer motor, double variable frequency drive.
4). Japan SMC pneumatic component controls the move of scraper and ink blade.
5). Taiwan ABBA precision guide bar controls up-and-down movement.
6). Taiwan HIWIN precision linear guide rail control left/right movement.

7). Vacuum stainless steel printing table ensure the precision of printing.

model	SF-SAC4060
max print size	400 mm * 600 mm
print table size	500 mm * 750 mm
max print thickness	30 mm
air pressure	4.0 ~ 6.0 kfg/cm2
related power	380V/50HZ/2.2KW
max print speed	1000 pcs/hour
size	12691165 cm
weight	543 kg
